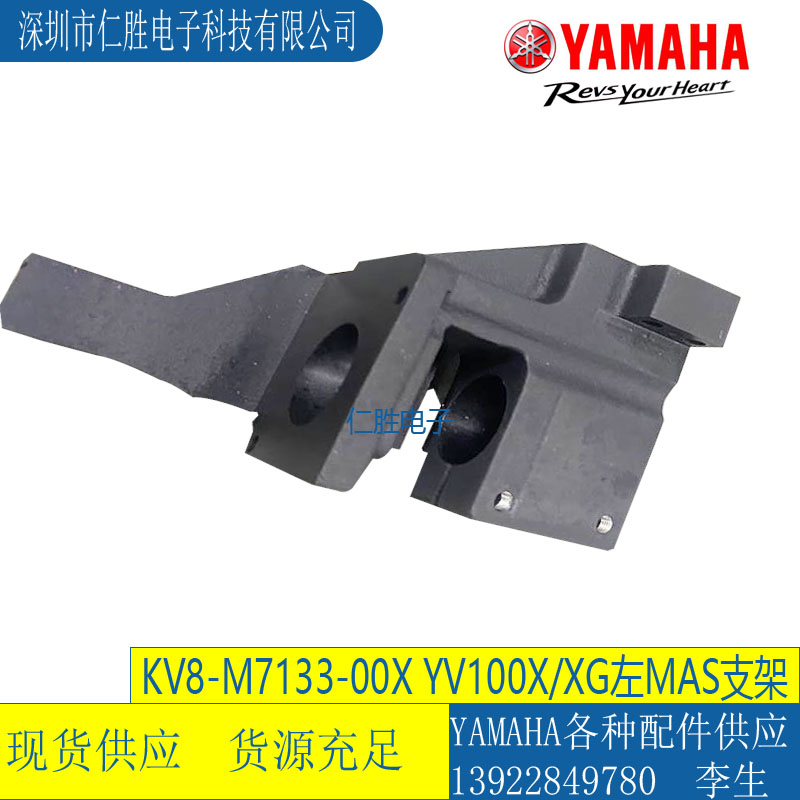

KV8-M7133-00X YAMAHA貼片機YV100X/XG左MAS支架移動相機MAS HOLDER CAMERA

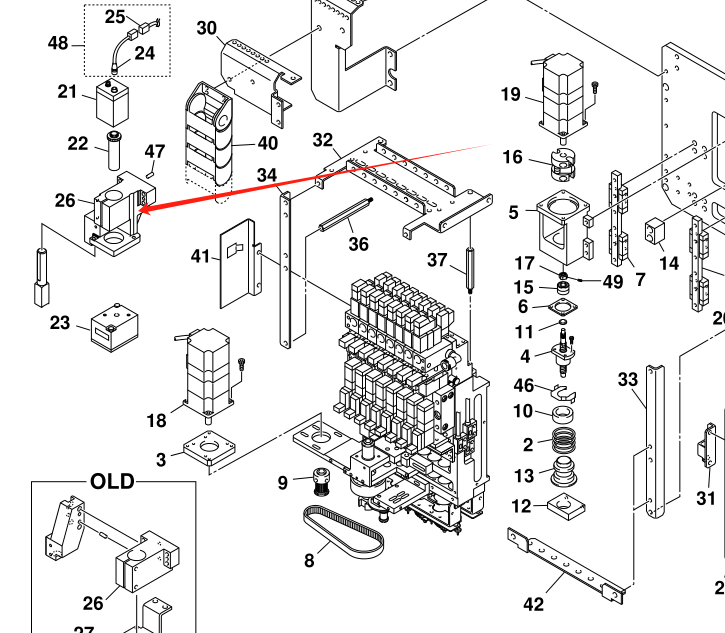

 KGB-M7102-00X
PLATE HEAD 1
2KV8-M7118-00X SPG. MAIN 1
3KV8-M7125-00X FLANGE MOTOR 1
4KV8-M7128-00X BALL SCREW Z 1
4-1 KV8-M7128-A0X BALL SCREW Z ASSY. 1 W / No.46
2004.01
M3Y0102
5KV8-M7129-01X HOLDER 1 BEARING 1
5-1 KGT-M7129-00X HOLDER 1 BEARING 1
2004.01 M410128
6KV8-M7130-00X PLATE BEARING 1
7KV8-M7136-00X GUIDE, Z AXIS 1
8KGB-M7137-00X
BELT R, MOTOR 1
9KGB-M7139-00X PULLEY, MOTOR 1
10 KV8-M7145-00X DAMPER, Z SCREW 1
11 KV8-M71V6-00X
WASHER 1
12 KV8-M71Y7-00X HOLDER, BLOCK Z 1
13 KV8-M71Y8-00X BRACKET, SPRING 1
14 KJ2-M7151-01X DUMPER, Z GUIDE 1
15 KG2-M7141-00X
BEARING 1
7000ADF
16 KU4-M7120-00X
COUPLING 1
17 KG2-M9173-00X LOCK NUT 1
18 90K55-4W073R AC SERVO MOTOR 1
19 90K55-4W074Z AC SERVO MOTOR 1
20 99480-04012 PIN PARALLEL 8 4X12
21 KGA-M7210-01X CCD CAMERA 1
22 KV7-M7211-00X
LENS 095 1
23 KV7-M7600-00X FIDUCIAL LIGHT ASSY. 1
24 KGA-M66F4-00X C.CABLE ASSY 1 1.7M
25 KGA-M66F2-00X C.CABLE ASSY 1 6M
26 KV8-M7133-00X HOLDER CAMERA 1
26-1 KGB-M7133-00X HOLDER MULTI MACS 1
2002.07.11 M270025
27 KV8-M7135-00X STAY, FID. LIGHT 1
27-1
Delete
2002.07.11 M270025
28 KV8-M71W1-00X PLATE, I/O BOARD 1
29 KV8-M71W2-01X STAY 1, CABLE 1
30 KGB-M71W3-00X
STAY 2, CABLE 1
31 KV8-M71W5-00X STAY 2, I/O BOARD 1
32 KGB-M71W7-00X BRACKET TOP 1
33 KGB-M71W8-00X BRACKET R 1
34 KV8-M71W9-00X BRACKET L 1
35 KV8-M71WC-00X
BOLT SPACER 4 M4-50MM
36 KV8-M71WF-00X
BOLT SPACER 2 M4-75MM
37 KV8-M71WG-00X
BOLT SPACER 2 M4-70MM
38 90562-03J100 SPACER 4
M3X10
39 KGB-M71WJ-00X COVER, I/O BOARD 1
40 KV8-M71WK-00X GUIDE CABLE 1
41 KGB-M71WL-00X COVER, HARNESS 1
42 KV8-M71WA-00X BRACKET, HNS 2
43 KGB-M71WR-00X
BRACKET, I/O PLATE 1
44 KGB-M71WS-00X
BOLT SPACER 2 M4-30
45 KGB-M71WT-00X
BOLT SPACER 2 M4-43
46 KV8-M71YC-00X HOLDER, Z SPRING 1
47 99480-04010 PIN PARALLEL 8 4X10
2004.01.23 M410108
48 KGA-M60F6-00X C,CABLE ASSY 1 7,7
49 92A08-04305
SET SCREW
|
