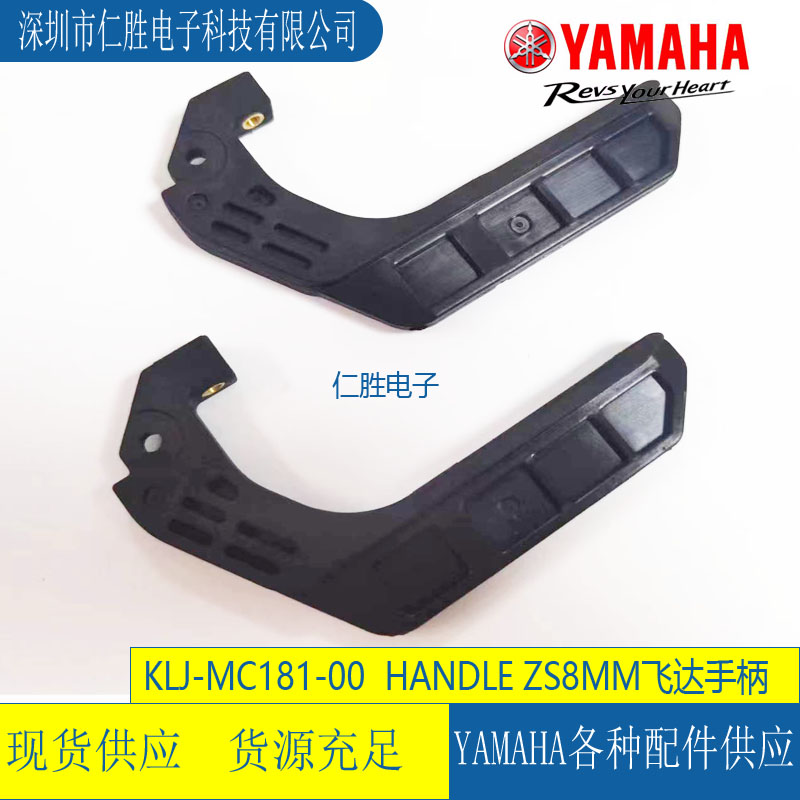

YAMAHA ZS8MM電動(dòng)飛達(dá)手柄/把手喂料器KLJ-MC181-00 HANDLE

NO Parts_No. Parts_Name Q_ty Remarks Change Compati
1 KLJ-MC10W-00 FRONT BLOCK ASSY. 1
2 90990-01J042 BOLT,HEX. S/H 2
3 KHJ-MC105-00 PIN,TAIL 1
4 91312-03008 BOLT HEX.SOCKET HEAD 2
5 KHJ-MC106-00 PLATE,UNDER 1
6 KHJ-MC107-00 SHIM,FRONT BLOCK 1 1 T0.01 <Note-1>
7 KHJ-MC108-00 SHIM,FRONT BLOCK 2 1 T0.05 <Note-1>
8 KHJ-MC10G-00 SHIM,FRONT BLOCK 3 1 T0.10 <Note-1>
9 KHJ-MC10U-00 SHIM,FRONT BLOCK 4 1 T0.03 <Note-1>
10 KHJ-MC10V-00 SHIM,FRONT BLOCK 5 1 T0.02 <Note-1>
11 KHJ-MC109-00 SHIM,PLATE UNDER 1 1 T0.01 <Note-1>
12 KHJ-MC10A-00 SHIM,PLATE UNDER 2 1 T0.05 <Note-1>
13 KHJ-MC139-00 SHAFT,IDLE GEAR 1 1
14 KLJ-MC1C1-00 PLATE,SPRING ASSY. 1
15 KHJ-MC1C3-00 SCREW 2
16 KLJ-MC1F3-00 BRKT.,REEL HOLDER 1
17 90990-09J008 SCREW,FLAT HEAD 7
18 KHJ-MC183-00 SPACER,TENSION 1 1
19 KHJ-MC184-00 SPACER,TENSION 2 1 <Note-1>
20 KLJ-MC186-00 WIRE,UNCLAMP 1
21 KHJ-MC187-00 SPRING,TENSION 1
22 KLJ-MC18H-00 CLAMP LEVER ASSY. 1
23 KHJ-MC189-01 PIN,CLAMP 1
24 KHJ-MC18J-00 SCREW,FLAT HEAD 1
25 KHJ-MC18A-00 SPRING,CLAMP 1
26 KLJ-MC18B-00 COVER,WIRE 1 1
27 KLJ-MC18C-00 COVER,WIRE 2 1
28 KLJ-MC18K-00 LEVER,UNCLAMP ASSY. 1
29 KLJ-MC18L-00 PIN,LEVER UNCLAMP 1
30 90990-14J001 CIRCLIP 2
31 98707-03006 SCREW,FLAT HEAD 2
32 92A08-03306 SCREW,SET 1
